Pipelines are the arteries of modern industry, transporting vital fluids like oil, gas, CO2, water, and chemicals across vast distances. While pipelines are built to last, they are far from invulnerable. Over time, they face numerous threats—from environmental stress to mechanical impact and corrosion. For asset owners, responding swiftly and effectively to pipeline damage is not just a maintenance issue—it’s a safety, regulatory, and financial imperative.
Among the most effective and widely used pipeline damage solutions are welded sleeves, which offer both reinforcement and pressure containment depending on the damage type. But not all sleeves are created equal. In this blog, we’ll explore the most common types of pipeline damage and match each to the best sleeve repair solution, helping you understand when to use what—whether it’s for pipeline corrosion repair, sealing cracks, or stabilizing dents.
If you’re an engineer, field technician, or operator searching for proven pipeline sleeve repair options, this comprehensive guide will equip you with practical answers.
The Role of Pipeline Sleeves in Repair and Maintenance
Pipeline sleeves are structural steel enclosures—usually welded over damaged sections—to restore or preserve pipeline integrity. These sleeves come in various configurations but are generally classified as:
- Type A Sleeves: Non-pressure-retaining sleeves for reinforcement
- Type B Sleeves: Pressure-retaining sleeves for sealing leaks and restoring containment
The choice between these types depends entirely on the nature of the pipeline damage. Let’s look at the five most common damage types and the best sleeve solution for each.
1. Corrosion Damage
How It Happens:
Corrosion is one of the most common causes of pipeline deterioration, especially in underground or offshore systems. It results from chemical or electrochemical reactions between the pipe material and its environment, leading to metal loss. Corrosion can be:
- External (due to soil, moisture, and environmental exposure)
- Internal (caused by transported fluids, contaminants, or acids)
Risks:
- Wall thinning
- Pitting
- Reduced pressure tolerance
- Complete wall breach if left untreated
Best Sleeve Repair Solution: Type A Sleeve (Preventive) or Type B Sleeve (Advanced)
- For early-stage corrosion where the pipe wall remains intact, a Type A sleeve is sufficient to provide structural reinforcement.
- For deep pitting or wall perforation, a Type B pipeline sleeve is required to fully contain pressure and prevent leakage.
Kucher Steel Tip:
Our pipeline corrosion repair sleeves are custom-machined to match the exact curvature and wall thickness of the corroded segment, improving weld quality and repair durability.
2. Cracks and Longitudinal Defects
How It Happens:
Cracks may develop due to fatigue, weld defects, pressure cycling, change in product in pipeline or environmental stress cracking (ESC). Longitudinal seam cracks are particularly dangerous and can propagate quickly under pressure.
Risks:
- Rapid failure due to crack propagation
- Leak initiation
- Complete pipeline rupture if under high pressure
Best Sleeve Repair Solution: Type B Sleeve with Full Encirclement
- A pipeline crack sleeve must provide both structural reinforcement and full pressure containment.
- Type B sleeves are fully welded around the damaged pipe section and often filled with sealant or injected with grout to isolate the crack zone.
Kucher Steel Tip:
Our custom-fabricated sleeves can be designed with integrated ports for injection, allowing sealant or epoxy to be applied under pressure during installation.
3. Dents and Mechanical Impact
How It Happens:
Mechanical damage can come from construction activities, ground movement, third-party excavation, or impacts from vehicles and heavy equipment. Dents may include gouges or creases that weaken pipe wall structure.
Risks:
- Stress concentration at dent edges
- Fatigue cracking under pressure fluctuations
- Delayed failures
Best Sleeve Repair Solution: Type A Sleeve with Custom Geometry
- If the dent does not include a crack or leak, a Type A sleeve provides sufficient reinforcement.
- Custom sleeve curvature is critical to ensure even pressure distribution and avoid further deformation.
Kucher Steel Tip:
We use Custom Sleeve Fabrication to form custom-fit sleeves that follow the dented profile exactly, avoiding point loading or weld misalignment.
4. Girth Weld Defects
How It Happens:
Weld defects such as lack of fusion, slag inclusion, or porosity can lead to integrity issues. These are typically detected during inspections or after experiencing pressure anomalies.
Risks:
- Crack formation around weld zones
- Loss of structural continuity
- Leak paths along weld seams
Best Sleeve Repair Solution: Type B Sleeve with Circumferential Welds
- Girth weld defects should be treated with a pressure-retaining Type B sleeve, especially if wall compromise is suspected.
- Circumferential end welds ensure the sleeve fully contains the weld defect zone.
Kucher Steel Tip:
Our best sleeve repair solutions can be designed to overlap multiple weld seams if needed, reducing installation complexity and minimizing the number of field welds.
5. Leaks and Through-Wall Failures
How It Happens:
Leaks may result from advanced corrosion, cracked welds, manufacturing flaws, or accidental puncture. These are the most urgent repair cases and require immediate pressure containment.
Risks:
- Immediate pressure loss
- Fire, explosion, or environmental spill risk
- Regulatory penalties and downtime
Best Sleeve Repair Solution: Type B Sleeve with Sealing Capability
- Only a Type B sleeve can provide the pressure-retaining structure needed to seal a live leak.
- These sleeves can include ports for pressure equalization, drain/fill valves, or grout injection.
Kucher Steel Tip:
We offer fast-turnaround pipeline sleeve machining for emergency repairs, with sizes available from 2” to 60”+ and options for specialty coatings.
Matching Sleeve Types to Pipeline Damage
Here’s a quick reference table summarizing common damage types and the recommended repair sleeve:
Damage Type | Sleeve Type | Pressure Containment | Customization Notes |
Corrosion (early) | Type A or Type B | No | Precision fit to prevent further wall stress |
Corrosion (advanced) | Type B | Yes | May require fill ports or sealant application |
Cracks | Type B | Yes | Ideal with injection ports or epoxy filling |
Dents | Type A or Type B | No | Custom geometry for dent profile matching |
Girth Weld Defects | Type B | Yes | Circumferential welds critical for containment |
Through-Wall Leaks | Type B | Yes | Emergency application with fast installation |
Why Custom Sleeve Fabrication Matters
Off-the-shelf sleeves rarely match the real-world variables of pipeline damage. That’s why at Kucher Steel, we focus on custom sleeve fabrication using advanced CNC technology. Customization improves every key repair factor:
- Installation speed: Fewer field modifications mean faster repairs.
- Repair longevity: Better fitment improves weld integrity and load distribution.
- Material compatibility: Sleeves can be made from carbon steel, stainless steel, or corrosion-resistant alloys.
- Compliance: Designs can be built to but not limited to ASME B31.8, B31.4, or CSA Z662 standards.

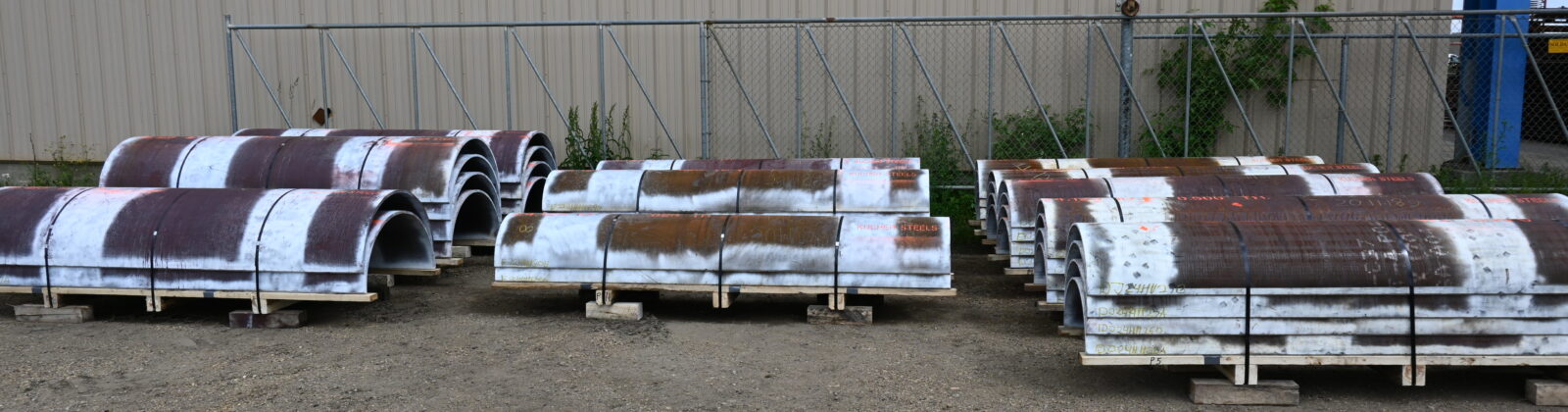

Kucher Steel’s Sleeve Capabilities
Whether you’re dealing with pipeline corrosion, cracking, or impact damage, we offer:
- Type A and Type B sleeve fabrication
- Diameters from 2” to over 60”
- Full or partial encirclement
- Integrated drain and fill ports
- Beveled or square-cut ends
- CNC-machined contours for complex profiles
- Fast delivery for scheduled and emergency repairs
Our sleeves are trusted by oil, gas, and mining clients across North America and beyond.
Final Thoughts: Choose the Right Sleeve for the Job
When pipeline damage occurs, having the best sleeve repair solution ready can mean the difference between a quick fix and a costly shutdown. From early-stage corrosion to full-blown through-wall leaks, understanding how each sleeve type aligns with the specific defect is essential.
For non-pressure defects like dents or early corrosion, Type A sleeves offer fast, cost-effective reinforcement. For pressure-retaining situations like cracks and leaks, Type B sleeves provide the containment and structural performance needed to protect your assets and meet regulatory requirements.
At Kucher Steel, we’re here to support your pipeline integrity program with custom-engineered pipeline damage solutions tailored to your field conditions, material needs, and project timelines.
Contact us today to learn more about our Custom sleeve capabilities, material options, and rapid turnaround times for your next pipeline repair.
